Lithium tantalate (LiTaO3) Nonlinear Optical Grade Crystal Wafer
Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.
Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates
Crystro's LiTaO3 crystal is grown by Czochralski method.Max diameter reach 4inch,it's now the biggest size in this filed,we can custom size and specs ,rougness<0.5nm.
Other optical single crystals like GGG,SGGG,TGG,TSAG are also available.
Crystro provides:
- Excellent photoelectric property
- High Damage Threshold
- High Curie Temperature
Typical Specifications:
| Properties | LiTaO3(LT) |
| Type of Material | Single Crystal |
| Crystal Structure | Trigonal,a = 5.154, c = 13.784Å |
| Melting Point | 1650℃ |
| Curie Temperature | 607℃ |
| Transmission Range | 400 – 5000 nm |
| Absorption edge | 270nm |
| Absorption loss | < 0.15 %/cm @ 1064 nm |
| Refractive Index | no=2.176,ne=2.180(at 0.633 µm) |
| no=2.131,ne=2.134(at 1.2 µm) |
| Density | 7.45g/cm3 |
| Thermal Conductivity | 8.78x 10-7 m2/sec |
| Optical homogeneity | ~10-5 |
| Hardness (Mohs) | 5 |
| Elastic Coefficient | CE11 2.33(X 1011 N/m2) |
| CE33 2.77(X 1011 N/m2) |
| Dielectric Constant | ε11/ε0 52.7 |
| ε33/ε0 44.5 |
| Solubility in Water | insoluble in water |
| NLO Coefficients | d33 = 13.8 pm/V |
| d22= 2.4 pm/V |
| d11= 0.85 pm/V |
| Electro-Optic Coefficients | r31 =8.4 pm/V, @633nm |
| r22 =20 pm/V, @633nm |
| r33 =30.5 pm/V, @633nm |
| Damage Threshold | 2 MW/cm2@532nm |
| Standard Diameter | dia150x50mm |
Note: Other sizes and coatings are available upon request.
Crystal orientations available: Z-cut, X-cut, Y-cut
Typical product sizes available
Bulk crystals:
up to 4 inch diameter and 50 mm thick

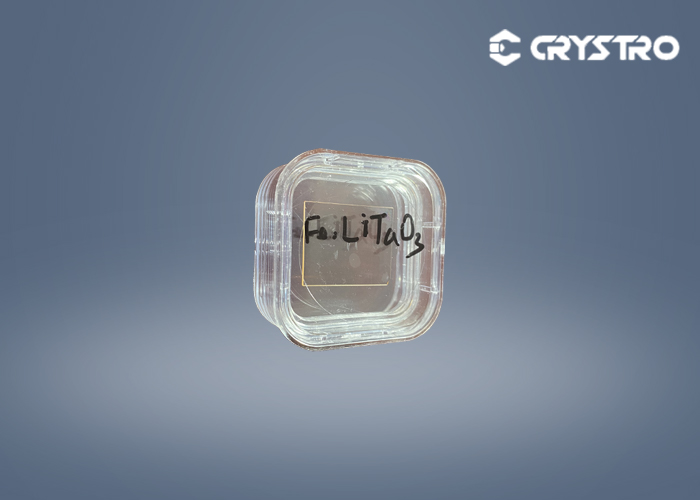

Crystal substrates / wafers (single side or double side polished)
10 x 10 x 0.5 mm
2 inch diameter x 0.5mm thick
4 inch diameter x 0.5mm thick
