Lithium Niobate - LiNbO3 Crystals With CR-AU Coating

LiNbO3 (Lithium niobate, LN) crystal is a negative uniaxial crystal and one of the most thoroughly characterized optical materials. With its wide transparency range in the visible and mid-infradred and the excellent chemical and mechanical stability, LN crystal can be used as a bifrengent material for applications in infrared.

With its large electro-optic coefficients, wide optical transparency window, and availability of high optical quality crystals, LN (lithium niobate) crystal is often the material of choice for optical modulation and Q-switch at near-infrared and infrared wavelengths. For electro-optic modulators (EOM) the crystal can be z-cut with zero residual birefringence along the direction of light propagation or x-cut with non-zero residual birefringence and the maximized effective electro-optic coefficient. For Q-switch the crystal is typically z-cut with zero residual birefringence and an electric field is applied transverse to the direction of light propagation. The piezoelectric ringing in LN is a disadvantage at high repetition frequency, but can be overcome to some extent with proper piezoelectrically damped designs.

Crystro provides:

• LiNbO Wd3 wedges used for fiber optical isolators and circulators.
• Reliable delivery
• Strict quality control
• Technical support
• Very competitive prices

Basic Properties of LiNbO₃

CR AU Coating LiNbO3 Crystals

COC Piezoelectric Effect Crystals

Trigonal Lithium Niobate Crystals

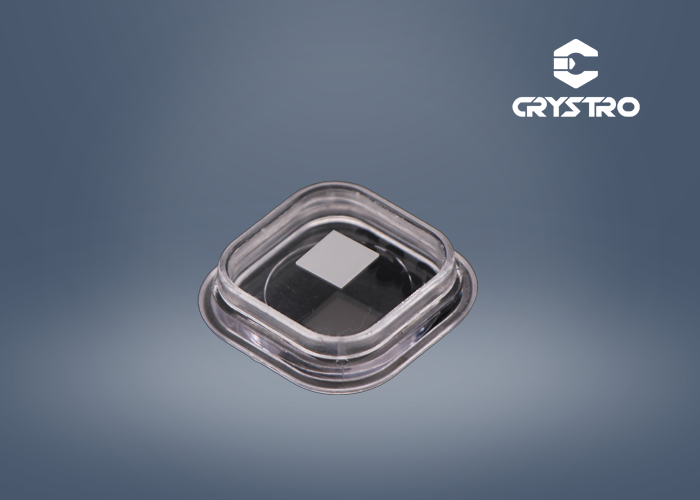

CR AU Coating Lithium Niobate LiNbO3 Piezoelectric Effect Crystals Images
