wide range wavelengths 70dB 980nm Free Space Optical Isolator

Brand Name : Crystro

Model Number : CR201030-01

Certification : SGS/COC

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 3-4 weeks

Packaging Details : Carton Package

Center Wavelength : 400nm-1064nm

Aperture : 3mm-12mm

Isolation : 60-70dB(double)

Transmission : >93%

Tunable Temperature : 10-30℃

Temperature : -20-70℃

Typical Insertion Loss : 0.3 dB

Contact Now

Customized Free Space Optical Isolator

Our free-space optical isolator (Faraday isolator) and Faraday rotator selection includes a wide range of wavelengths, from 400nm-1064nm , with typical isolation as high as 40 dB (single stage), and 75 dB (dual stage). We can offer a broadband optical isolator as required also single point wavelength. Most of our optical isolators are available with a choice of low, medium or high power capability.

Features:

  • Superior Performance and Reliability
  • High Isolation / Low Insertion Loss
  • Low, Medium and High Power Options
  • High Power Models with Exit Ports for
    Return Signal Monitoring or Beam Injection
  • Customized size and wavelength

Specifications:

Dia3.5mm Isolator.pdf

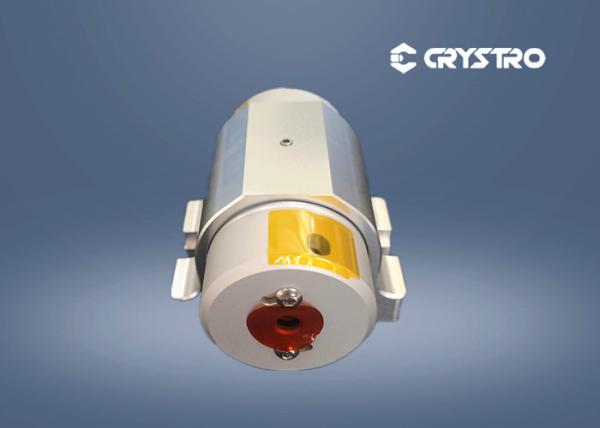

wide range wavelengths 70dB 980nm Free Space Optical Isolator

UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃

Applications:

Maintain the light's linear polarizaton

Avoide deleterious effects of back reflectons in laser diodes

Eliminate instability in amplified laser systems caused by ASE

Reduce Nd and Yb oscillations from ASE created by amplifiers
